Splunk Exploring SPL

Introduction

Splunk SPL is the language used in Splunk, a robust SIEM solution for searching and exploring machine data. Search Processing Language (SPL) enhances search effectiveness by combining various functions and commands to create optimized and complex search queries. This room will explore key fundamentals of searching capability, focusing on chaining SPL queries to construct queries ranging from simple to complex.

Explore these concepts in a hands-on way with the resources available at TryHackMe - Splunk: Exploring SPL

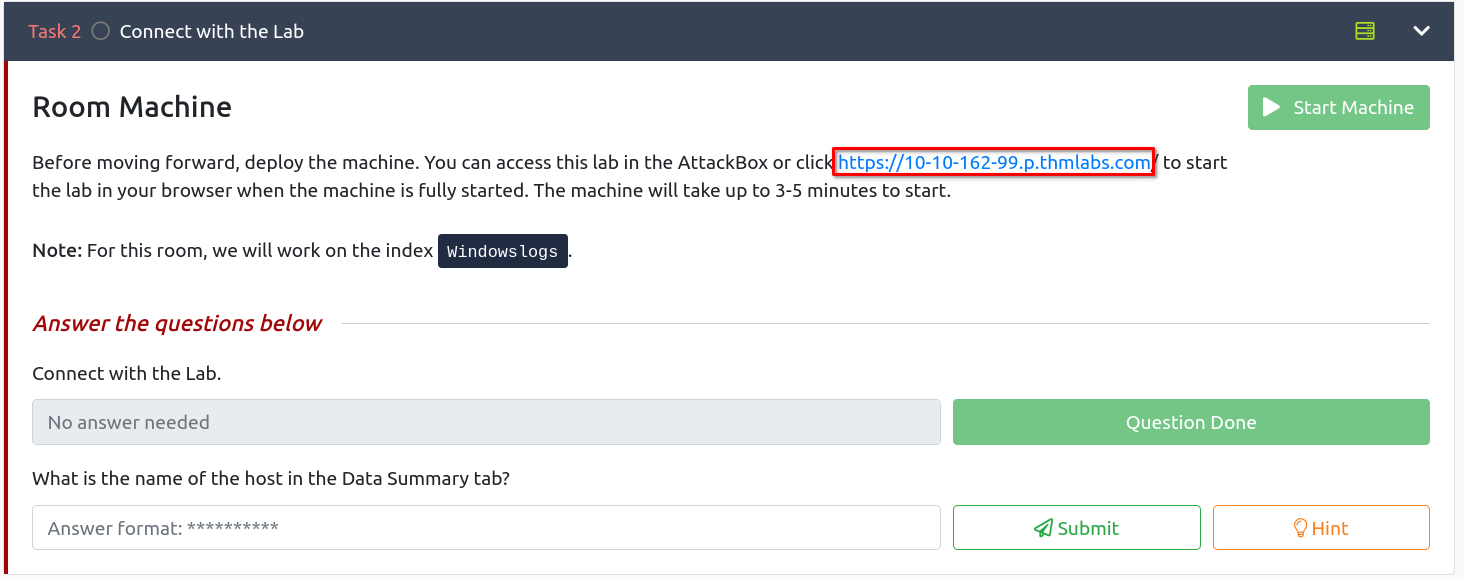

Task 2 Connect with the Lab

Before you proceed, deploy the machine. You can access the lab in the AttackBox or click here https://Machine_IP[.]p[.]thmlabs[.]comto start it in your browser once the machine is fully started. Please allow 3-5 minutes for the machine to start.

Open Splunk and click on search and reporting to view host in the Data Summary

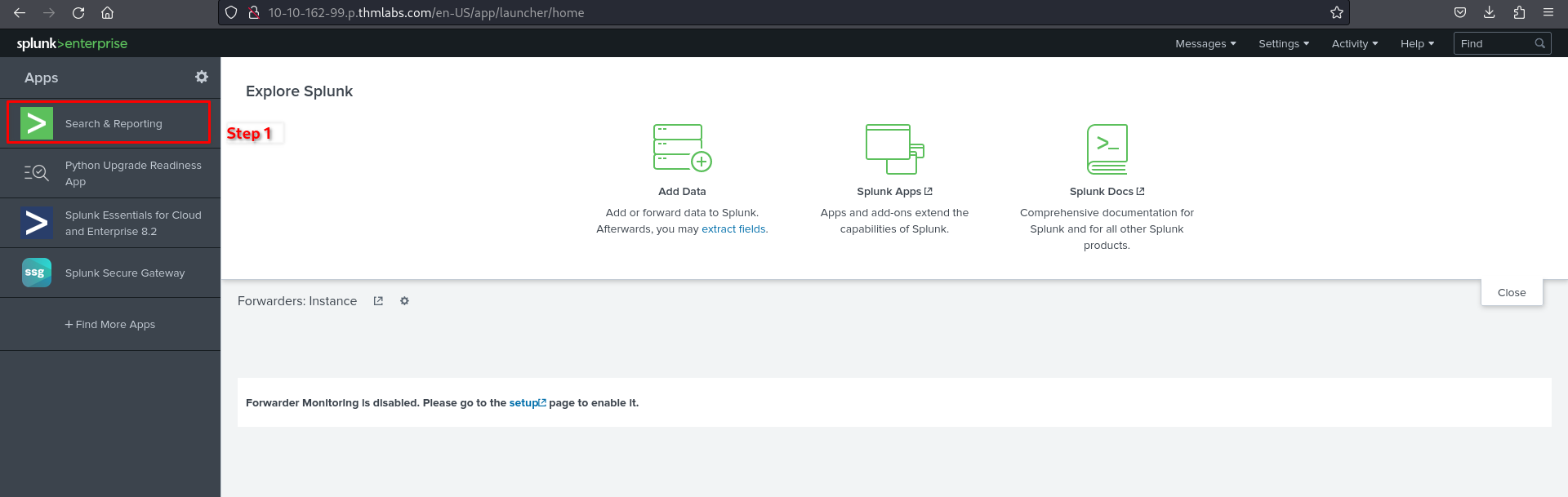

Step 1: Click Search and Reporting

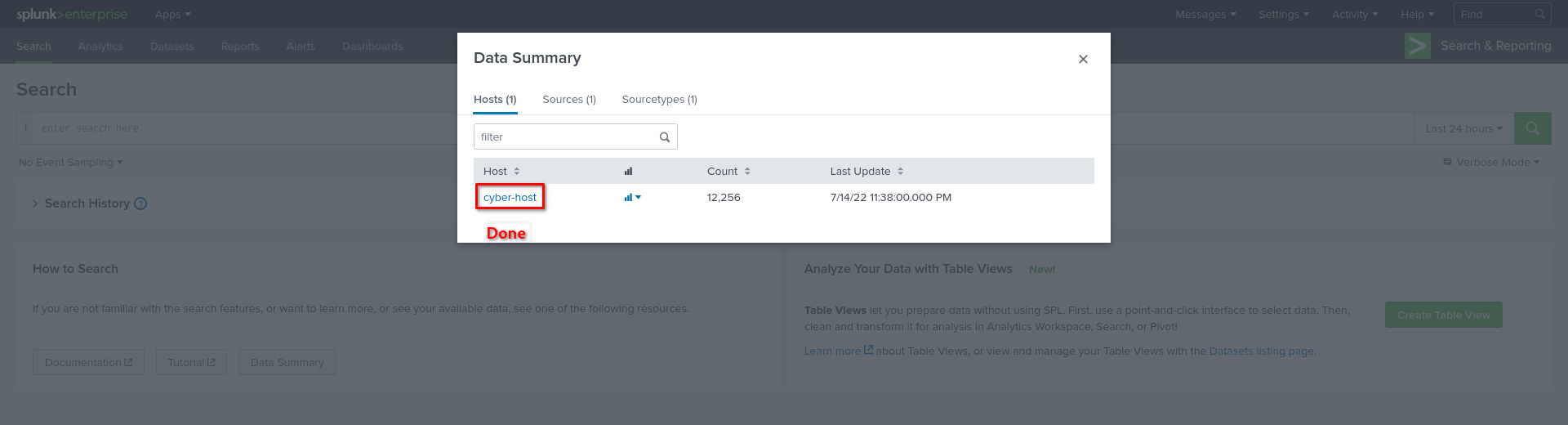

Step 2: Click on Data Summary

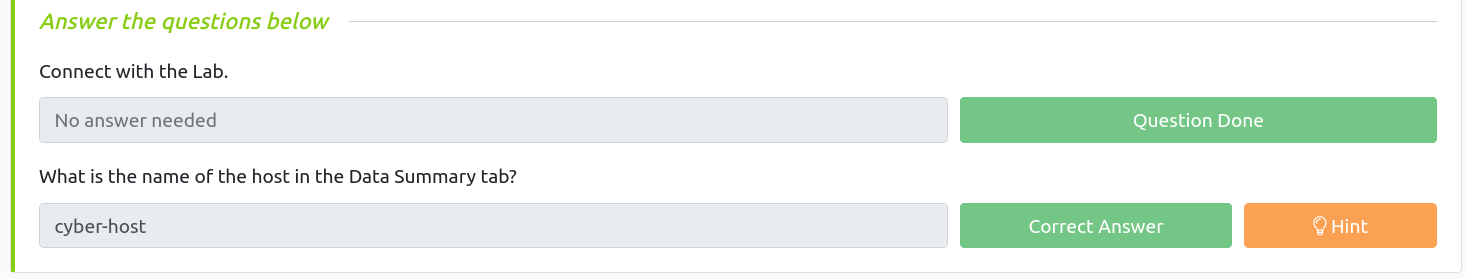

Here hostname for machine and answer Q2.

Task 3 Search & Reporting App Overview:

First, we go to Splunk

Then to search and reporting

Then Search History to check the history of the queries

To answer this question: In the search History, what is the 7th search query in the list? (excluding your searches from today)

We select the query and set 7 as the correct answer

To answer this question: In the left field panel, which Source IP has recorded max events?

First, we search for anything related to the host: cyber-host

Secondly, we want to specify the source IP

We click on All Fields

Then we search for the sourceip field and select it, after which it will appear

Here we click on source ip

All available ips will appear in these logs

And this ip answer Q2

Here comes the third question: How many events are returned when we apply the time filter to display events on 04/15/2022 and Time from 08:05 AM to 08:06 AM?

First, we go to the Time section and choose Date & Time Range

Then we choose between and set the day and hour

Then we click on apply

Booom then shows us the answer 134 events

This final answer for task 3.

Task 4 Splunk Processing Language Overview

Here comes the first question: How many Events are returned when searching for Event ID 1 AND User as James?

First, we go to search using EventID="1"

Then we choose User Field

Boom then shows us the answer Cybertees\James

Here comes the second question: How many events are observed with Destination IP 172.18.39.6 AND destination Port 135?

First, we go to search using DestinationIp="172.18.39.6 AND DestinationPort=135"

Boom then shows us the answer 4 events

Here comes the third question:

What is the Source IP with highest count returned with this Search query?
Search Query: index=windowslogs Hostname=”Salena.Adam” DestinationIp=”172.18.38.5”

In this question I am asked to execute a specific query to get the answer to the third question

The answer is: 172.90.12.11

Here comes the fourth question: In the index windowslogs, search for all the events that contain the term cyber how many events returned?

In this question, I am asked to execute a query to search for anything that contains only the word cyber

The answer is: 0 events

Here comes the fifth question: Now search for the term cyber*, how many events are returned?

In this question, I am asked to execute a query to search for anything that contains the word cyber

We implement it

The answer is: 12256 events

Task 5 Filtering the Results in SPL

The first question

What is the third EventID returned against this search query?

Search Query: index=windowslogs | table _time EventID Hostname SourceName | reverse

In this question, I am asked to execute a query to create a table containing _time, EventID, Hostname, and SourceName.

We implement it

The answer is: 4103

Second question

Use the dedup command against the Hostname field before the reverse command in the query mentioned in Question 1. What is the first username returned in the Hostname field?

In this question I am asked to execute a query to get the first username returned in the Hostname field

Here he tells us to use the dedup command

Like this: index=windowslogs | table _time EventID Hostname SourceName |dedup Hostname | reverse

The answer is: Salena.Adam

Task 6 SPL - Structuring the Search Results

The first question

The answer is: James.brown

Second question

What is the last EventID returned when the query in question 1 is updated with the tail command?

Here he tells us to use the tail command

Like this: index=windowslogs | table _time EventID Hostname SourceName | tail

The answer is: 4103

The third question

Sort the above query against the SourceName. What is the top SourceName returned?

Here it tells us to use the sort command

Like this: index=windowslogs | table _time EventID Hostname SourceName | sortSourceName

So that it arranges them according to SourceName

The answer is: 4103

Task 7 Transformational Commands in SPL

The first question

List the top 8 Image processes using the top command - what is the total count of the 6th Image?

Here we use top command

So that it displays only more top 8

The answer is: 196

Second question

Using the rare command, identify the user with the least number of activities captured?

Here we use rare command

Like this: index=windowslogs | rare User

Rare command is used to identify and extract infrequently occurring values within a specified field, aid in anomaly detection and analysis.

The answer is: James

The third question

Create a pie-chart using the chart command - what is the count for the conhost.exe process?

Here we use top command

Like this: index=windowslogs* "conhost.exe" | top limit=20 Image

This search retrieves the top 20 instances of “conhost.exe” in the specified Windows logs index, focusing on

The answer is: 70

Tools:

• Search Processing Language


That concludes Splunk SPL room—your hub for mastering the basics of the Search Processing Language.

Happy exploring!
